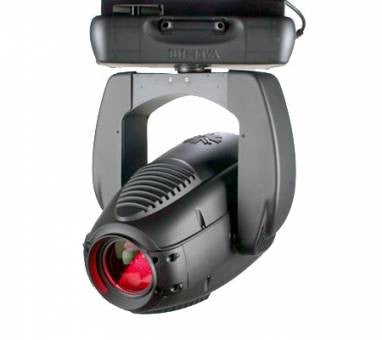

Description
- A three-filter CYM cross-fading mechanism. A fixed color wheel with six interchangeable color filters and continuous wheel rotation for additional effects. It includes a variable CTO color temperature correction filter
- A 13-element 6:1 zoom optics system, covering a range from 10° to 60°
- A four-blade shutter mechanism that allows the blades to be operated independently or in unison on two planes for a clear and crisp image. The entire mechanism can rotate 50o in either direction
- Full field dimming designed for smooth timed fades as well as quick dimming effects
- High-performance dual blade strobe system capable of ultra-fast operation
- One gobo/effects wheel provides five rotatable, indexable gobo positions and one open position
- One fixed gobo/effects wheel provides six positions for standard or custom gobos and one open position
- Variable beam focus to soften edges of gobos or spots. Remarkable depth of field capability allows morphing effects between all pattern and effects wheels
- Smooth, time-controlled continuous motion by way of three-phase stepper motor systems
- Pan - 540°, Tilt - 270°
